Clean Takun for sanding disk (Self vacuum type) Dust collector for 105mm diamond blades
Application

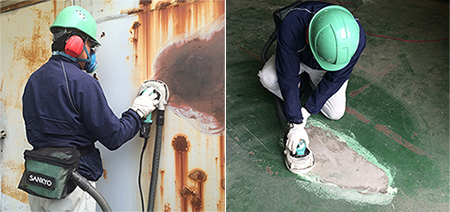

Dust collect at grinding operation site.Dust collector for removing coating film and rust.
Captures up to 80%* of airborne dust without vacuum cleaner
Collects airborne dust with large fan spinned by rotating spindle.
Easy operation at the site, not suitable to bring in vacuum cleaner or high place.
- Test condition: Grinding acrylic paint for about 20 minutes with 125mm sanding disk #16
installed to HiKOKI's disk grinder PDA-100J.
Captures up to 95% of airborne dust, with vacuum cleaner.
The result may varies depending on the disk grinder and the operation condition.
Belted mesh bag
-
Belted mesh bag Backle up around the waist
| Part No. | Size | |
|---|---|---|
| DA-4S(H) | For HiKOKI, Hitachi, Sankyo | 180×173×89mm |
| DA-4S(M) | For Makita | 180×173×89mm |
| Standard accessories: Sanding disk(125mmX#16) X 2, msh bag, paper filter, clip, exclusive hose(1.2m), adaptor(for 100mm), exclusive O ring, wheel nut, spacer, hex bar wrench |
||
Remark: Please replace with new sanding disk, when the attached sanding
disk is worn out.
Avalable size: ø100 X 15.9H or ø125 X 15.9H
Optional accessories
| Accessory name | Part No. |
|---|---|
| Paper filter (3 sheets/pack) | P301291G |
| Felt holder (for 125mm) | P301314G |
| Mesh bag | P301265G2 |
| hose (1.2m) | P301266G |
| Adapter (for 100mm) | P401384G |
| Wheel nut | P402151G |
| Spacer | P4021529G |
Caution: Not for disk grinder with brake.
Full charged cordless disk grinder can operate up to three minutes.
Avalable size: ø100 X 15.9H or ø125 X 15.9H
Available disk grinder for this dust collector
| HiKOKI's vacuum cleaner | Makita's vacuum cleaner | |
|---|---|---|
| 38 ø 28 ø |
Please connect with 320994 (HiKOKI standard accessory) | Please use both 38mm tip cuff (Makita standard accessory, sol separately with part of product) and Joint H (sold separately from Makita). |
| 25 ø | Please direct connect, in case the hose tip is made of rubber. | |
*Please use hose adopter which is our standard accessory and Joint H (sold separately from Makita) , to connect with DA-4A.
